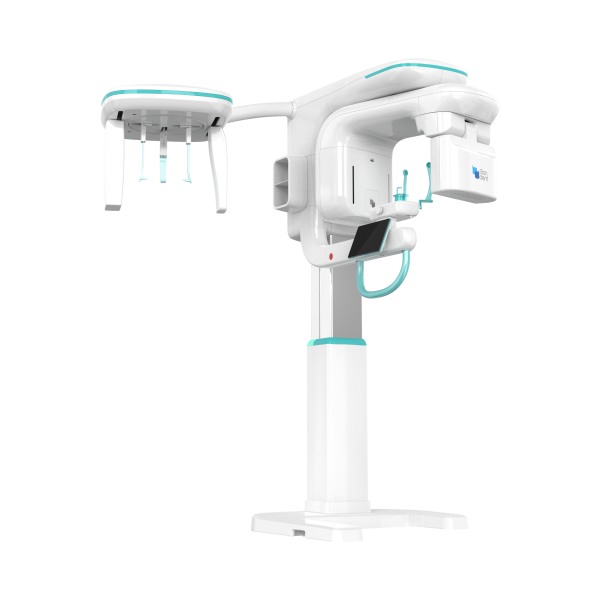

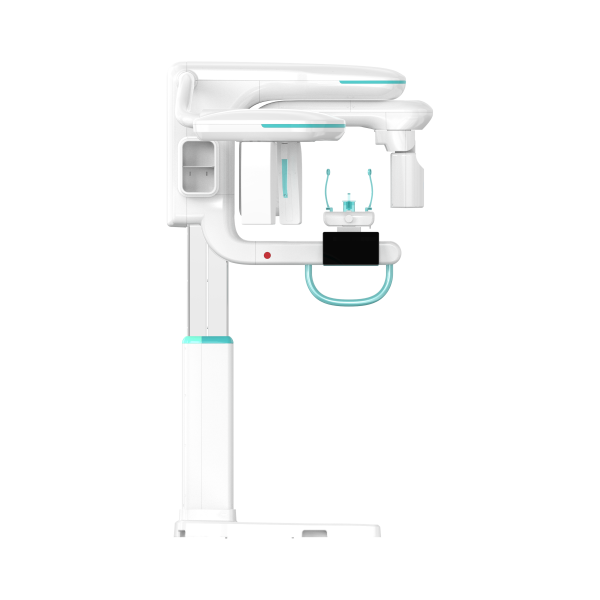

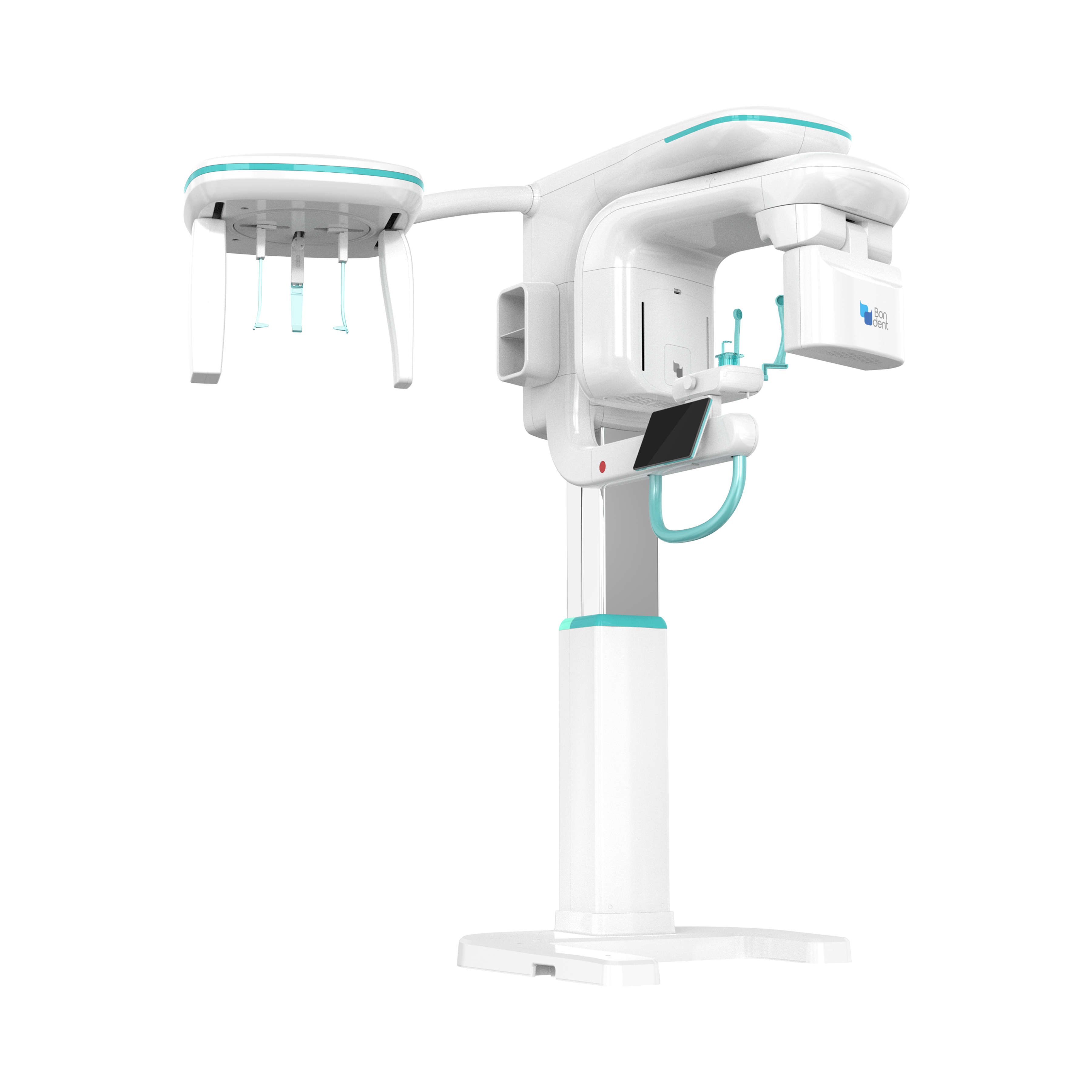

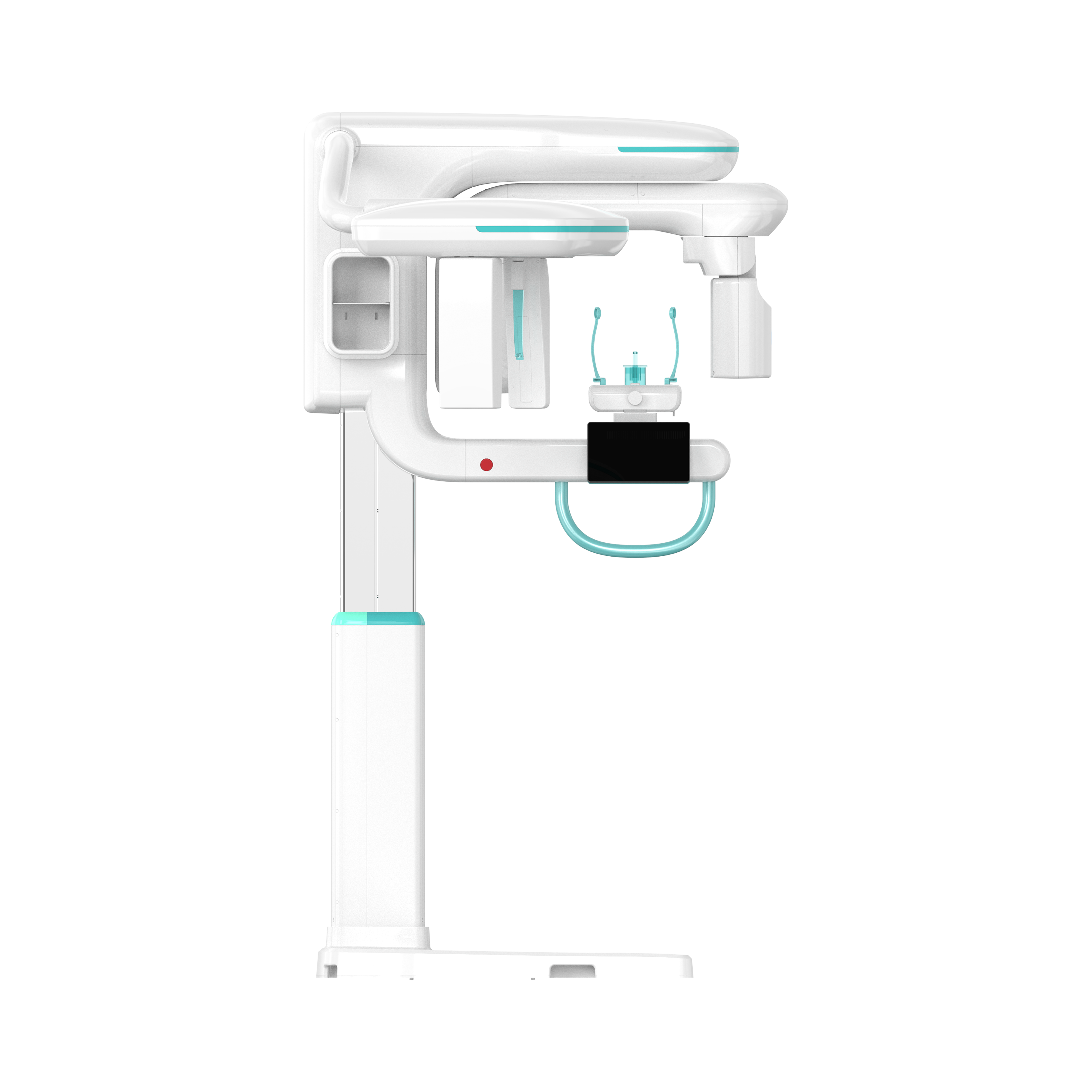

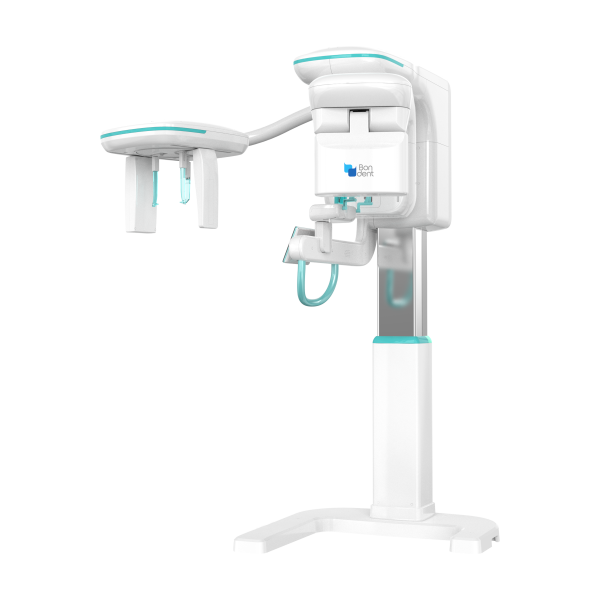

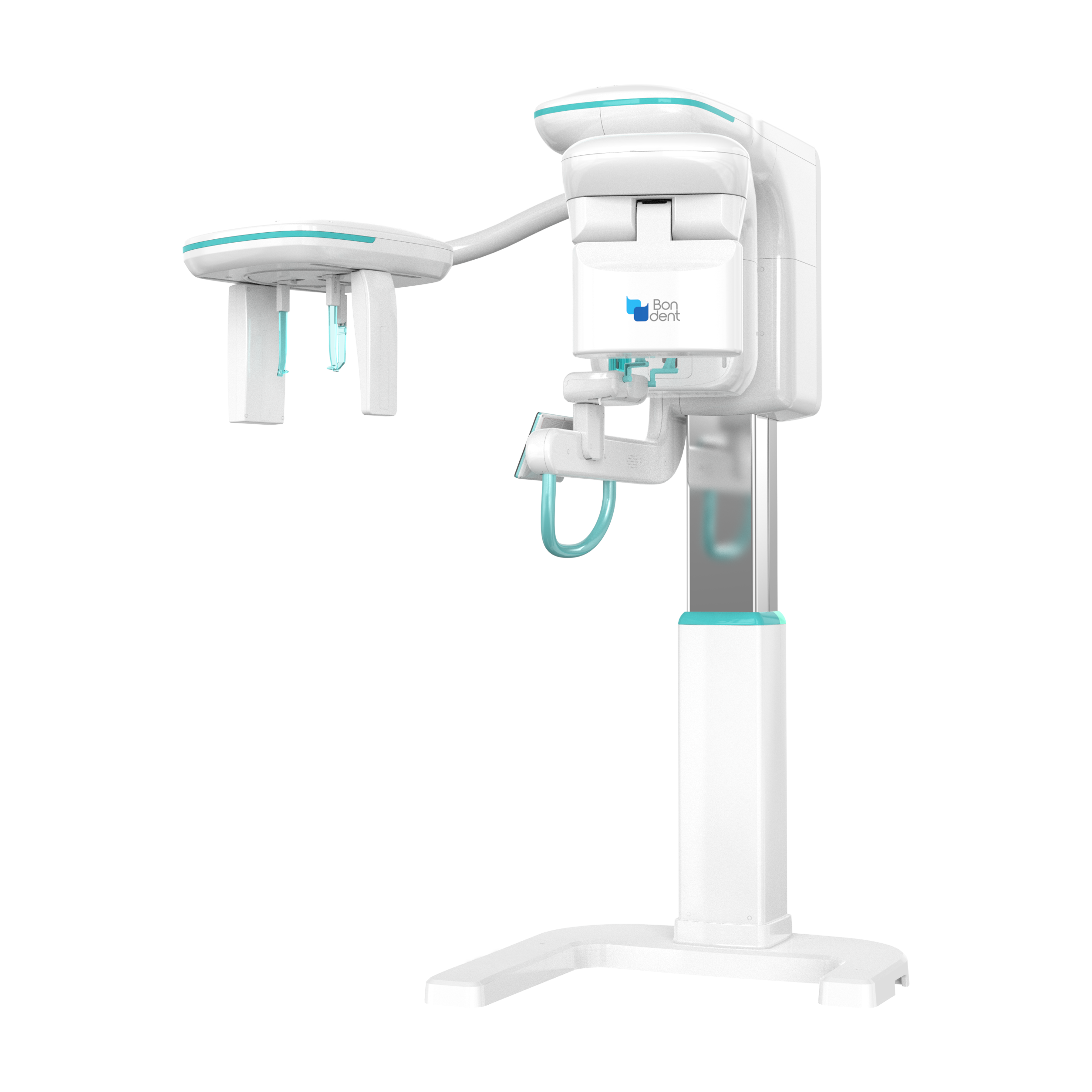

Bondent 3D-1020MS | Transforming Digital Dentistry with Premium 3-in-1 CBCT Imaging and AI Technology
Unlock a new dimension in dental diagnostics with the Bondent 3D-1020MS – a state-of-the-art all-in-one imaging system that combines CBCT, panoramic, and cephalometric scans. Built with cutting-edge AI-powered software, premium sensors, and advanced Bon Technology, the 1020MS delivers unmatched image clarity, diagnostic confidence, and clinical efficiency.
Key Features:
-
3-in-1 Imaging System
Supports CBCT, panoramic, and cephalometric scanning in one compact unit for various clinical applications – from implants to orthodontics. -
Wide Field of View (FOV)
Multiple scan options: 18×10 cm, 8×8 cm, 5×5 cm, and 4×4 cm – ideal for full arch, airway analysis, TMJ evaluation, or localized endodontics. -
High Resolution Imaging
Voxel size down to 70µm and >1.8 lp/mm spatial resolution for ultra-clear 3D reconstructions and sharp 2D images. -
Advanced AI-Powered Software
-
BonCeph: Auto cephalometric tracing with 25+ analysis templates
-
Implant Mode: Smart planning with bone density mapping
-
Airway Mode: Automatic airway segmentation & reporting
-
TMJ Mode: Auto-joint visualization with detailed views
-
-
Smart MAR & Noise Reduction
Bon MAR (Metal Artifact Reduction) and AI-based noise suppression enhance image clarity even with metal prosthetics or braces. -
Multilayer Panoramic Technology
Ensures sharp imaging at various jaw depths with adaptive enhancement modes to suit different diagnostic needs. -
10-Inch Touch Console
User-friendly touchscreen with real-time controls for faster workflow and smooth operation. -
Fast Scanning, Low Dose
-
CBCT: 8–24 sec
-
Panoramic: 14 sec
-
Ceph: 4.2 or 8.4 sec
Ensures efficient exams while minimizing patient radiation exposure.
-
-
Flexible Positioning
Supports standing, seated, and wheelchair patients with height adjustments from 1642–2342 mm. -
PACS & DICOM Compatible
Fully integratable into digital clinics with optional AI reports (BonDiag), and multi-mode compatibility.
